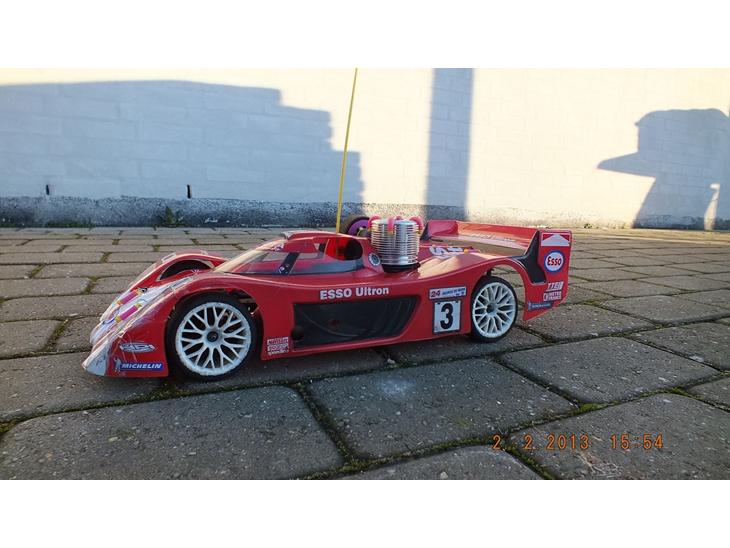

Bil HPI Super Nitro RS4 Toyota GT-One
Årgang:
2005
Drivkraft:
Racers Edge Sure Fire .32R Engine.
(Det er den sammen som Axial .32, som sælges i Europa).
ENGINE SPECS:
Horsepower: 3.6
RPM: 38,000
Engine Size: .32 cubic inch (5.2cc)
Sleeve: 8 port
Bore: 19.5 mm
Stroke: 17.5 mm
Crank: TURBO Modified, SG
Construction: ABC
Weight: 450 g (w/pull start)
Carburetor: 9 mm composite slide (with 8.5mm & 8 mm Carburetor reducers)
Carburetor adjustments: 3 needle, easy flush setting
Connecting rod: 7075 aluminum (Dual bushing)
Exhaust Type: Rear
Plug Type: Standard
Starting: Pullstart included
Oneway: TURBO Modified
HobbyKing - 15mm Exhaust Header - Black.
HPI 86188 - Ribbed Tuned Pipe - Silver.
HPI 87040 - Silicone Exhaust Coupling (Fra en Savage) - Purple.
Nova Racing - Alloy Axial .32 Spec 1 S Race Pro Cooling Head - Silver.
Racers Edge RCESF10512 - Sure Fire SF32R Piston & Sleeve.
(Det er den sammen som Axial .32, som sælges i Europa).
ENGINE SPECS:
Horsepower: 3.6
RPM: 38,000
Engine Size: .32 cubic inch (5.2cc)
Sleeve: 8 port
Bore: 19.5 mm
Stroke: 17.5 mm
Crank: TURBO Modified, SG
Construction: ABC
Weight: 450 g (w/pull start)
Carburetor: 9 mm composite slide (with 8.5mm & 8 mm Carburetor reducers)
Carburetor adjustments: 3 needle, easy flush setting
Connecting rod: 7075 aluminum (Dual bushing)
Exhaust Type: Rear
Plug Type: Standard
Starting: Pullstart included
Oneway: TURBO Modified
HobbyKing - 15mm Exhaust Header - Black.
HPI 86188 - Ribbed Tuned Pipe - Silver.
HPI 87040 - Silicone Exhaust Coupling (Fra en Savage) - Purple.
Nova Racing - Alloy Axial .32 Spec 1 S Race Pro Cooling Head - Silver.
Racers Edge RCESF10512 - Sure Fire SF32R Piston & Sleeve.
Topfart
Ca 80-100km/t.
Størrelse
1:8
L. 51.3cm.
B. 22.8cm.
H. 12.3cm.
L. 51.3cm.
B. 22.8cm.
H. 12.3cm.
Vægt
2.195g.
Ekstraudstyr
Bilen:
Dubro Inline Fuel Filter - Purple.
GPM EG8007 - Alloy Adjustable Engine Mount - Purple.
Hobby King HK81130 - 65mm Front Adjustable Alloy Shock Absorber - Black/Purple.
Hobby King HK81130 - 65mm Rear Adjustable Alloy Shock Absorber - Black/Purple.
Hot Racing IT0307 - Alloy 3 Stage Air Filter - Purple.
HPI 6502 - Body Mount Pad - Black.
HPI 77107 - Racing Clutch Bell 17Tooth.
HPI 86076 - Pilot Nut 1/4-28x8.5mm (Fra en Savage) - Black.
HPI 86077 - Collet Brass 7x6.5mm (Fra en Savage) - Messing.
HPI 86271 - Flywheel 34mm (3Pin) - Silver.
HPI 86356 - Throttle Return Spring (Fra en Savage) - Black.
HPI 87151 - PTFE Clutch Shoe / Spring Set (3pcs.) - Black.
HPI A343 - Lowered Front Shock Mount Set.
HPI A947 - Tuned Pipe Retainer Wires - Silver.
Team Integy T3568 - Alloy Sterring Bell Crank - Purple.
Team Integy T3582 - Alloy Center Bearing Block - Purple.
Radio gear:
ACG 1600mHa 6v - Batteri Hump Pack.
Hitec CRX 3-kanal 40mHz FM Radio Anlæg.
HPI 80559 - SF-1 Servo (Standard Torque).
HPI 80560 - SF-2 Servo (High Torque / 6.5kg-cm 6.0V).
HPI 80575 - Receiver Switch.
Ofna 91002 - Fail Safe.
Karosseri og Dæk og fælge:
HPI 7505 - Toyota GT-One TS020 300mm Body.
HPI 3035 - Mesh Wheel 57x35mm (2.2 in.) White.
HPI 3035 - Mesh Wheel 57x35mm (2.2 in.) White.
HPI 4599 - Racing Slick Belted Tire 57x35mm / 2.2 in.(35R).
HPI 4599 - Racing Slick Belted Tire 57x35mm / 2.2 in.(35R).
HPI 4691 - Inner Foam 57x35mm (2.2 in. / Firm).
HPI 4691 - Inner Foam 57x35mm (2.2 in. / Firm).
Tamiya PS01 Hvid Maling.
Tamiya PS02 Rød Maling.
Dubro Inline Fuel Filter - Purple.
GPM EG8007 - Alloy Adjustable Engine Mount - Purple.
Hobby King HK81130 - 65mm Front Adjustable Alloy Shock Absorber - Black/Purple.
Hobby King HK81130 - 65mm Rear Adjustable Alloy Shock Absorber - Black/Purple.
Hot Racing IT0307 - Alloy 3 Stage Air Filter - Purple.
HPI 6502 - Body Mount Pad - Black.
HPI 77107 - Racing Clutch Bell 17Tooth.
HPI 86076 - Pilot Nut 1/4-28x8.5mm (Fra en Savage) - Black.
HPI 86077 - Collet Brass 7x6.5mm (Fra en Savage) - Messing.
HPI 86271 - Flywheel 34mm (3Pin) - Silver.
HPI 86356 - Throttle Return Spring (Fra en Savage) - Black.
HPI 87151 - PTFE Clutch Shoe / Spring Set (3pcs.) - Black.
HPI A343 - Lowered Front Shock Mount Set.
HPI A947 - Tuned Pipe Retainer Wires - Silver.
Team Integy T3568 - Alloy Sterring Bell Crank - Purple.
Team Integy T3582 - Alloy Center Bearing Block - Purple.
Radio gear:
ACG 1600mHa 6v - Batteri Hump Pack.
Hitec CRX 3-kanal 40mHz FM Radio Anlæg.
HPI 80559 - SF-1 Servo (Standard Torque).
HPI 80560 - SF-2 Servo (High Torque / 6.5kg-cm 6.0V).
HPI 80575 - Receiver Switch.
Ofna 91002 - Fail Safe.
Karosseri og Dæk og fælge:
HPI 7505 - Toyota GT-One TS020 300mm Body.
HPI 3035 - Mesh Wheel 57x35mm (2.2 in.) White.
HPI 3035 - Mesh Wheel 57x35mm (2.2 in.) White.
HPI 4599 - Racing Slick Belted Tire 57x35mm / 2.2 in.(35R).
HPI 4599 - Racing Slick Belted Tire 57x35mm / 2.2 in.(35R).
HPI 4691 - Inner Foam 57x35mm (2.2 in. / Firm).
HPI 4691 - Inner Foam 57x35mm (2.2 in. / Firm).
Tamiya PS01 Hvid Maling.
Tamiya PS02 Rød Maling.
Bemærkninger
HPI Super Nitro RS4.
Konverteret om fra en Small block motor til en Big Block motor fra en HPI Savage.
Køre standart med en .15 motor (2.5cc) og nu er der en .32 motor på (5.3cc).
Den skal nok komme til at gå godt.
Der er kommet nyt stempel og forring i motoren og det er fra den nye Racers Edge Sure Fire .32R.
Konverteret om fra en Small block motor til en Big Block motor fra en HPI Savage.
Køre standart med en .15 motor (2.5cc) og nu er der en .32 motor på (5.3cc).
Den skal nok komme til at gå godt.
Der er kommet nyt stempel og forring i motoren og det er fra den nye Racers Edge Sure Fire .32R.
